Connect Gmail (via OAuth) – Leadfwd

Connect your Google Workspace (Gmail) mailboxes to Leadfwd using OAuth instead of App Passwords.

Requirements

Enable the Leadfwd.ai Connector for each unique Google Workspace organization (domain name). Example below.
Once the Connector is enabled for a specific domain, any email account from that domain/organization can connect their mailbox to Leadfwd by simply using the 'Sign in to Google' button.
OAuth Consent will be required for each mailbox that is connected to Read messages in the mailbox and to also send emails on behalf of the mailbox.

TL'DR

Enable the Leadfwd.ai Connector in Google. This task must be executed by an Administrator of your Google organization.

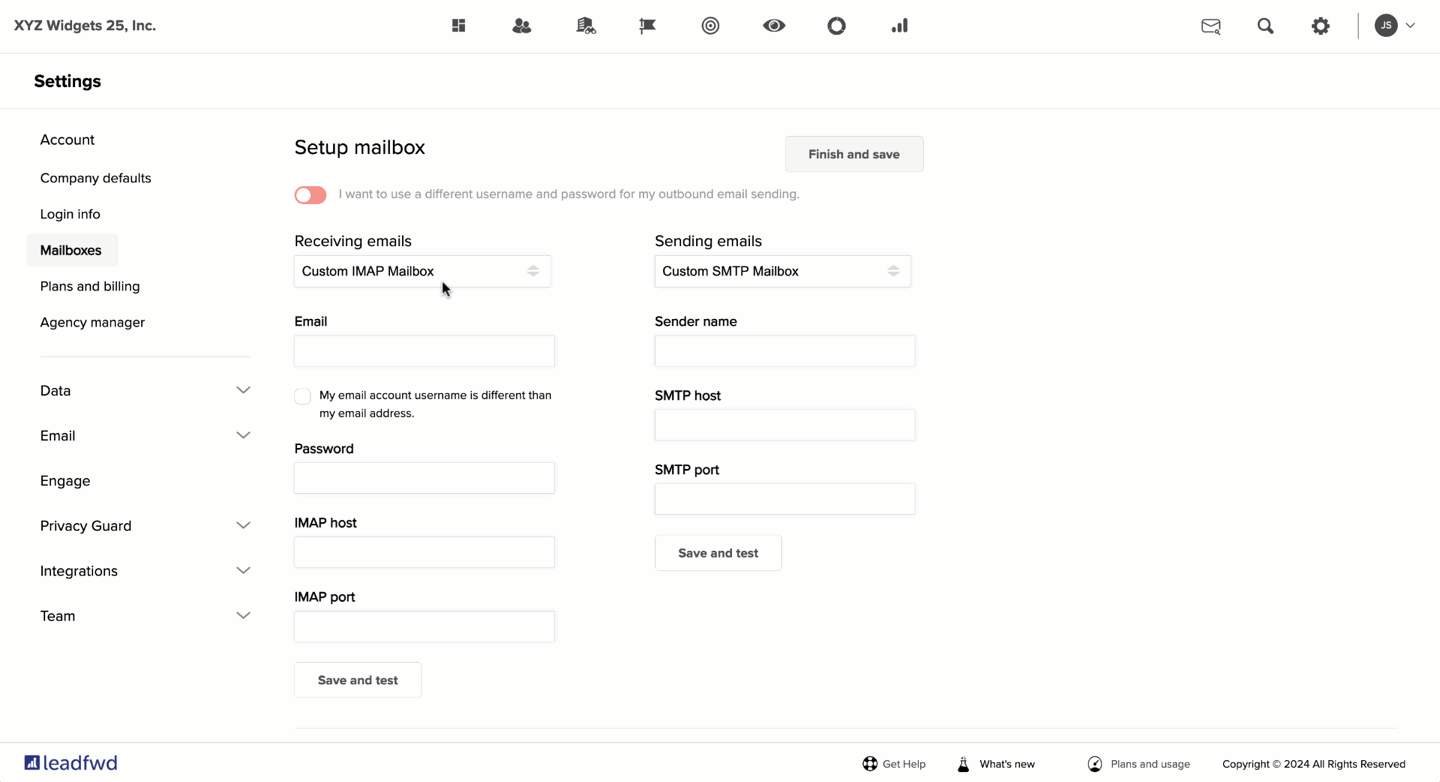

In Leadfwd: Navigate to Engage / Mailbox Connector / Connect a New Mailbox
Select Google Workspace (OAuth)
Navigate to your Google Admin Console and login to the appropriate organization/domain as an Administrator.

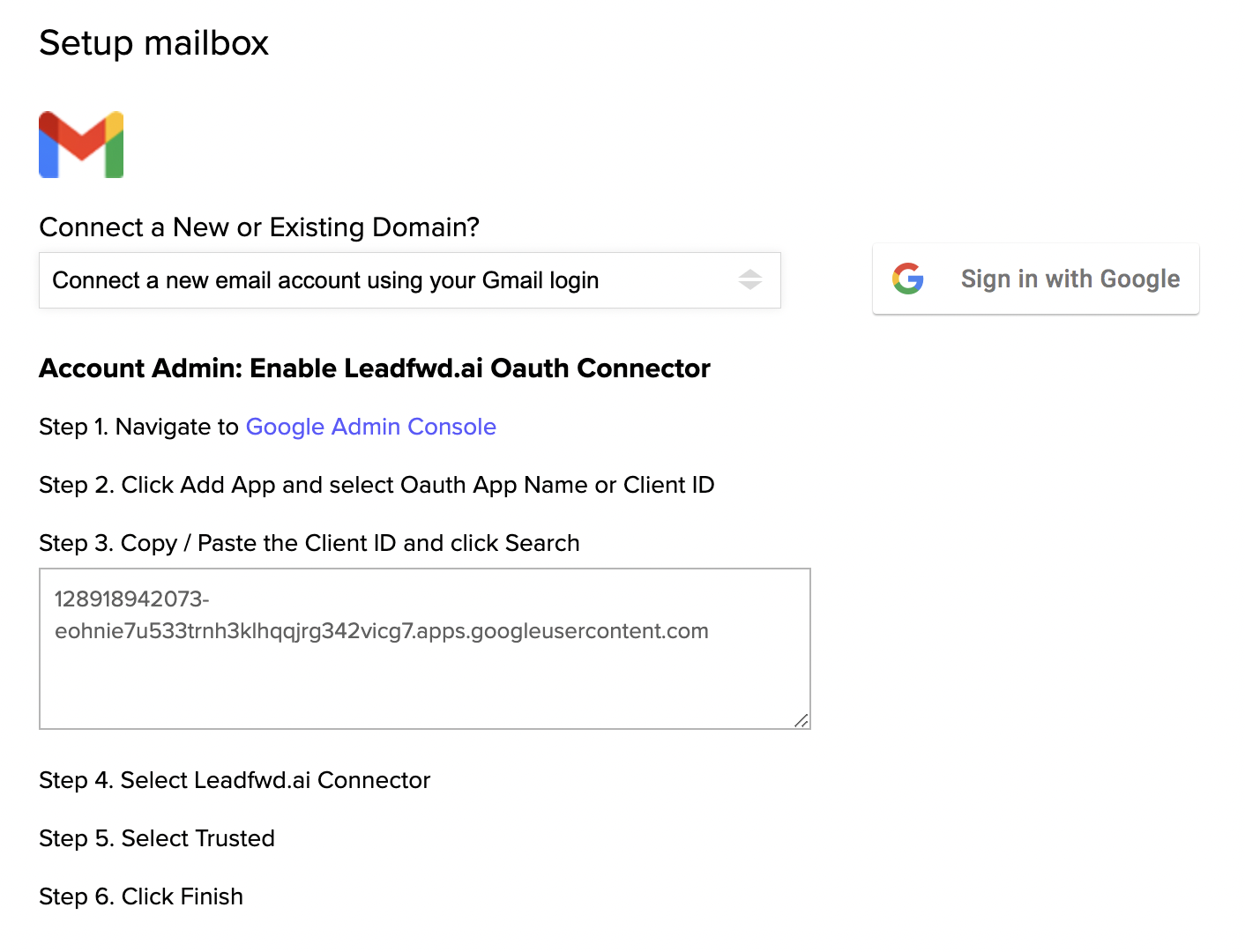

Ensure you copy the unique Client ID shown under Step 3 to your clipboard (screenshot below).

Screen Shot 2024-01-03 at 10.13.45 AM.png

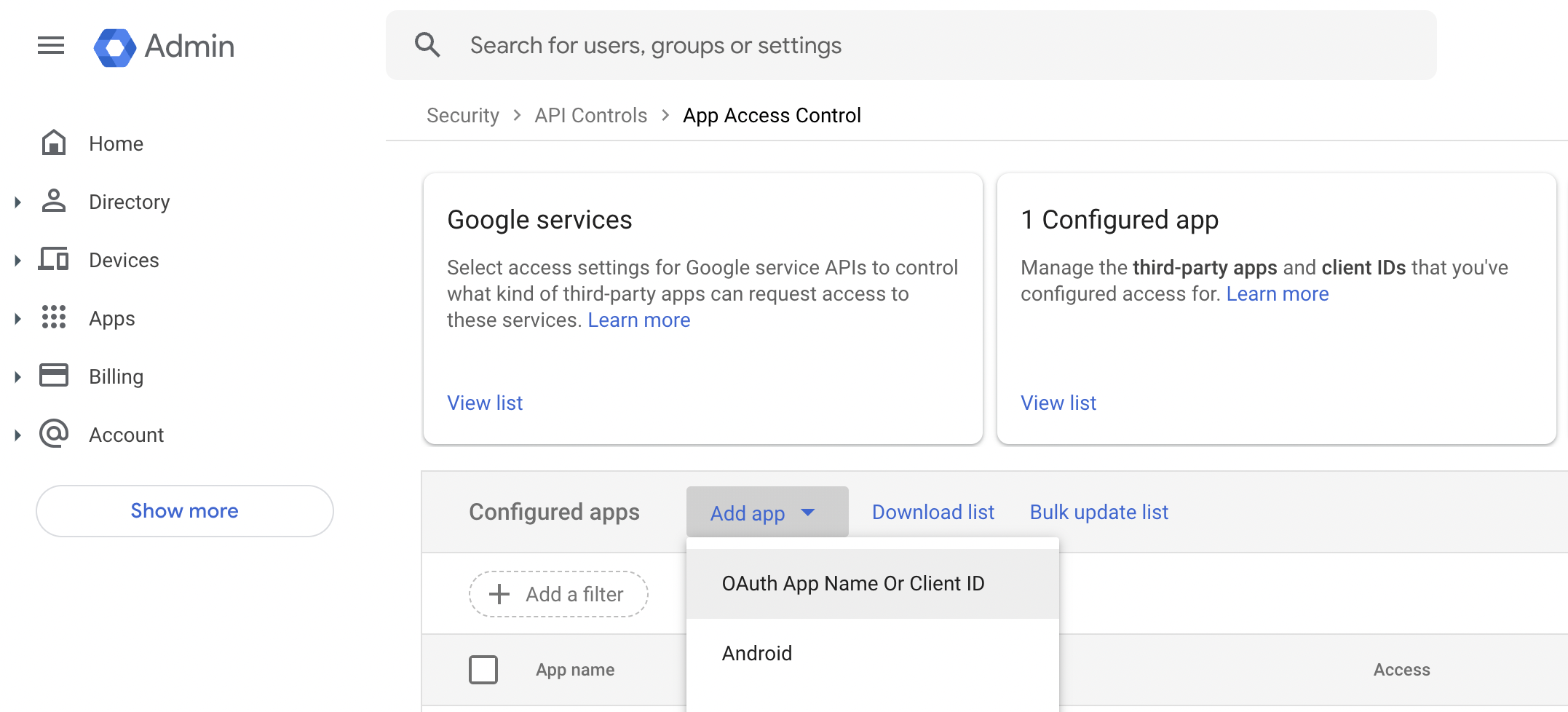

Step 1. Click Add App and select OAuth App Name or Client ID

From the Google Admin Console: https://admin.google.com/ac/owl/list?tab=configuredApps

Screen Shot 2024-01-03 at 10.05.17 AM.png

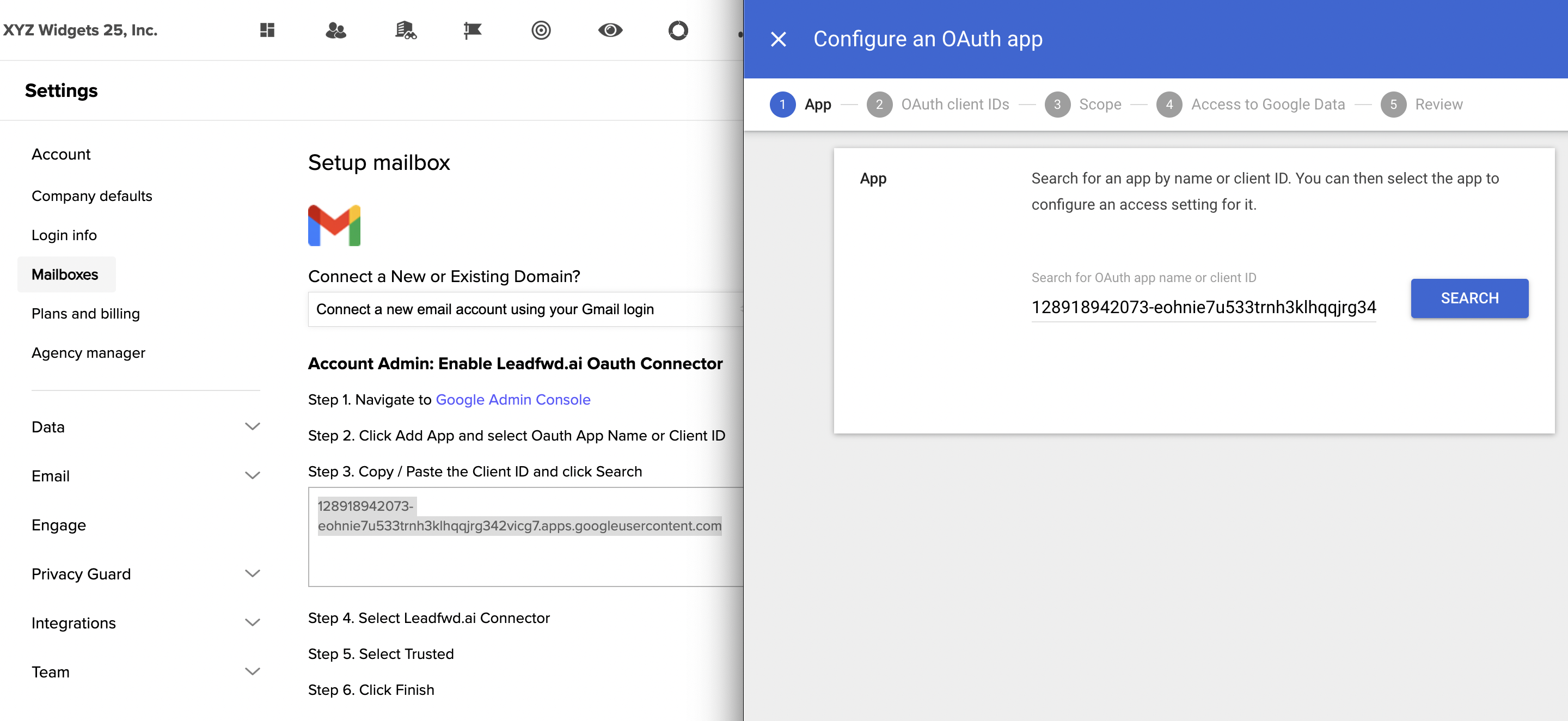

Step 2. Paste the Client ID and click Search

Screen Shot 2024-01-03 at 10.06.30 AM.png

Step 3. Leadfwd.ai Connector will appear in the App table, click Select

Screen Shot 2024-01-03 at 10.07.11 AM.png

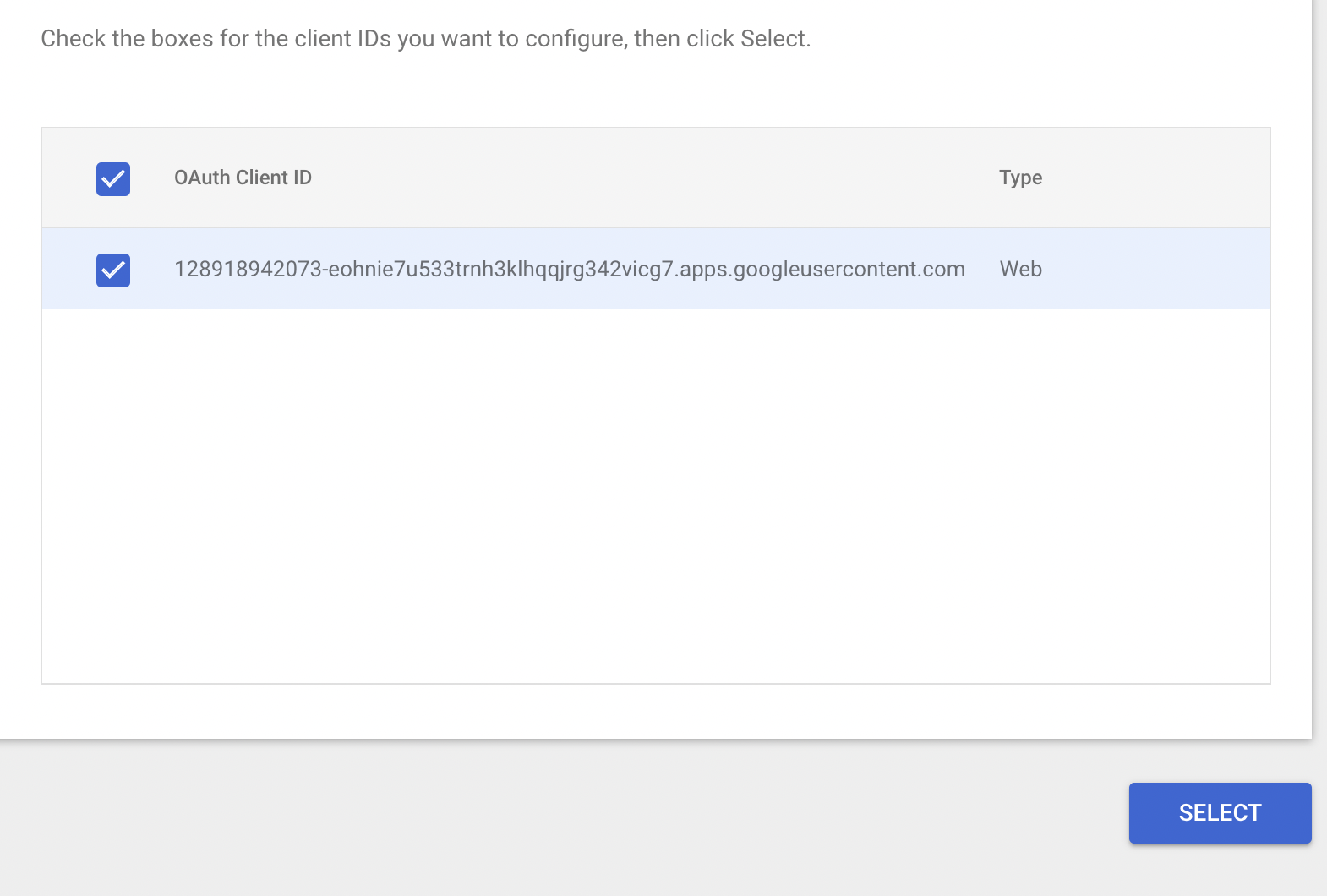

Step 4. Check the checkbox for Oauth Client ID, click Select

Screen Shot 2024-01-03 at 10.07.19 AM.png

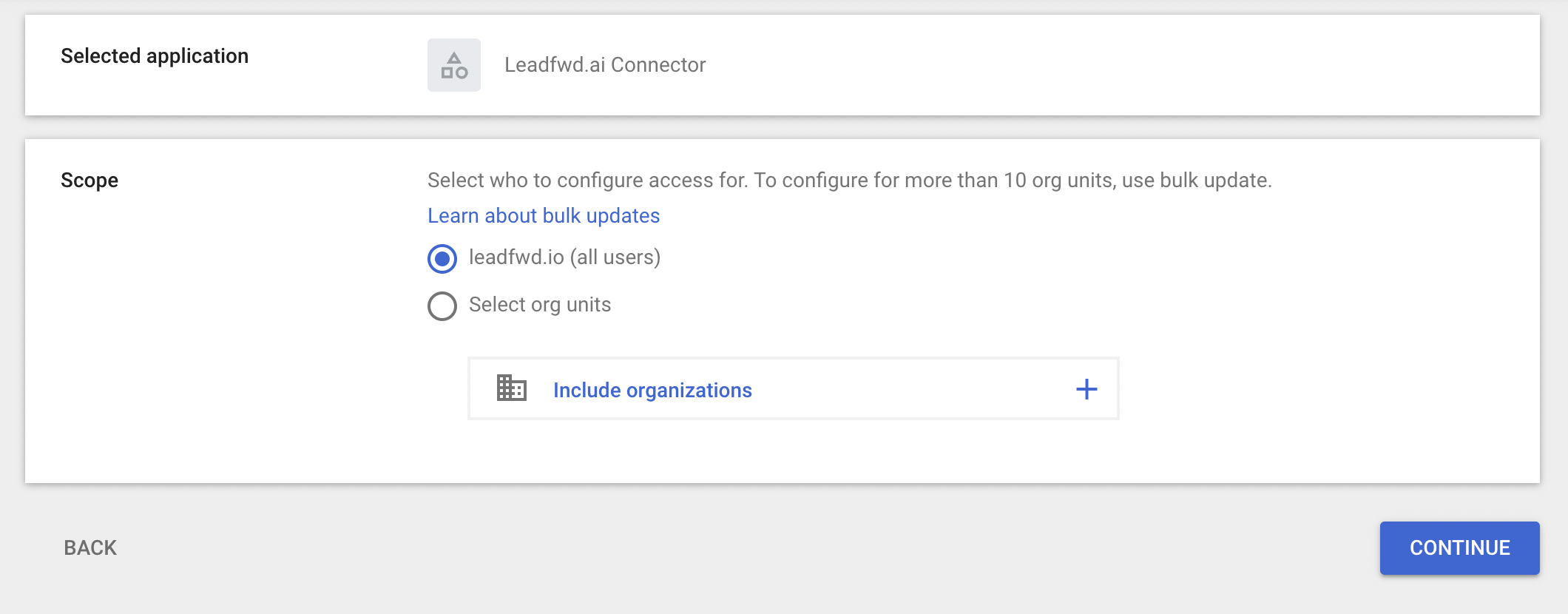

Step 5. Click Continue with the (all users) option selected for your organization/domain

Screen Shot 2024-01-03 at 10.07.28 AM.png

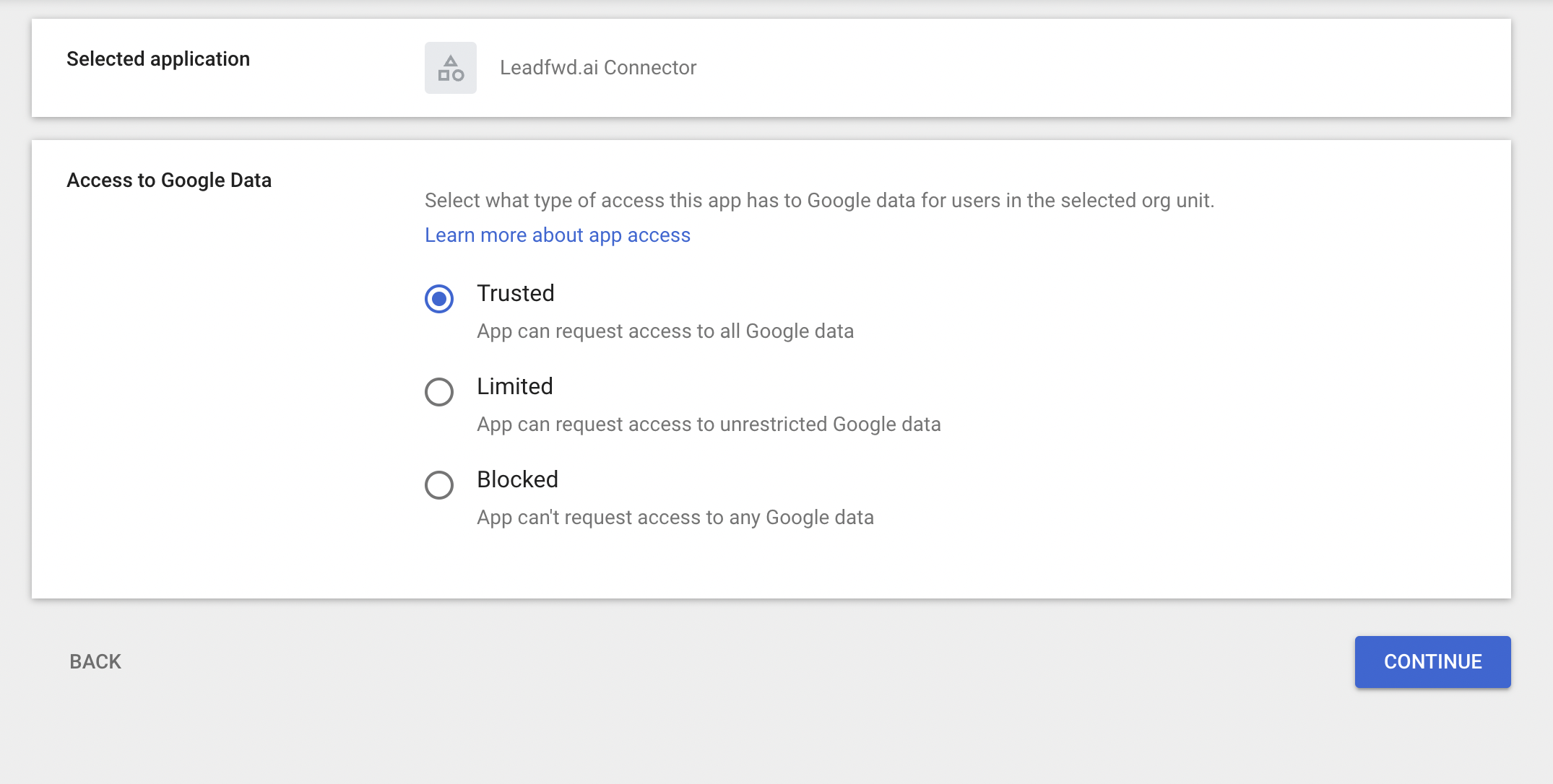

Step 6. Select Trusted, click Continue

The Leadfwd.ai Connector will only request access to read and send email from the connected mailbox and no additional scopes or permissions. Users will still review and consent to these permissions when they connect their mailbox.

Screen Shot 2024-01-03 at 10.07.34 AM.png

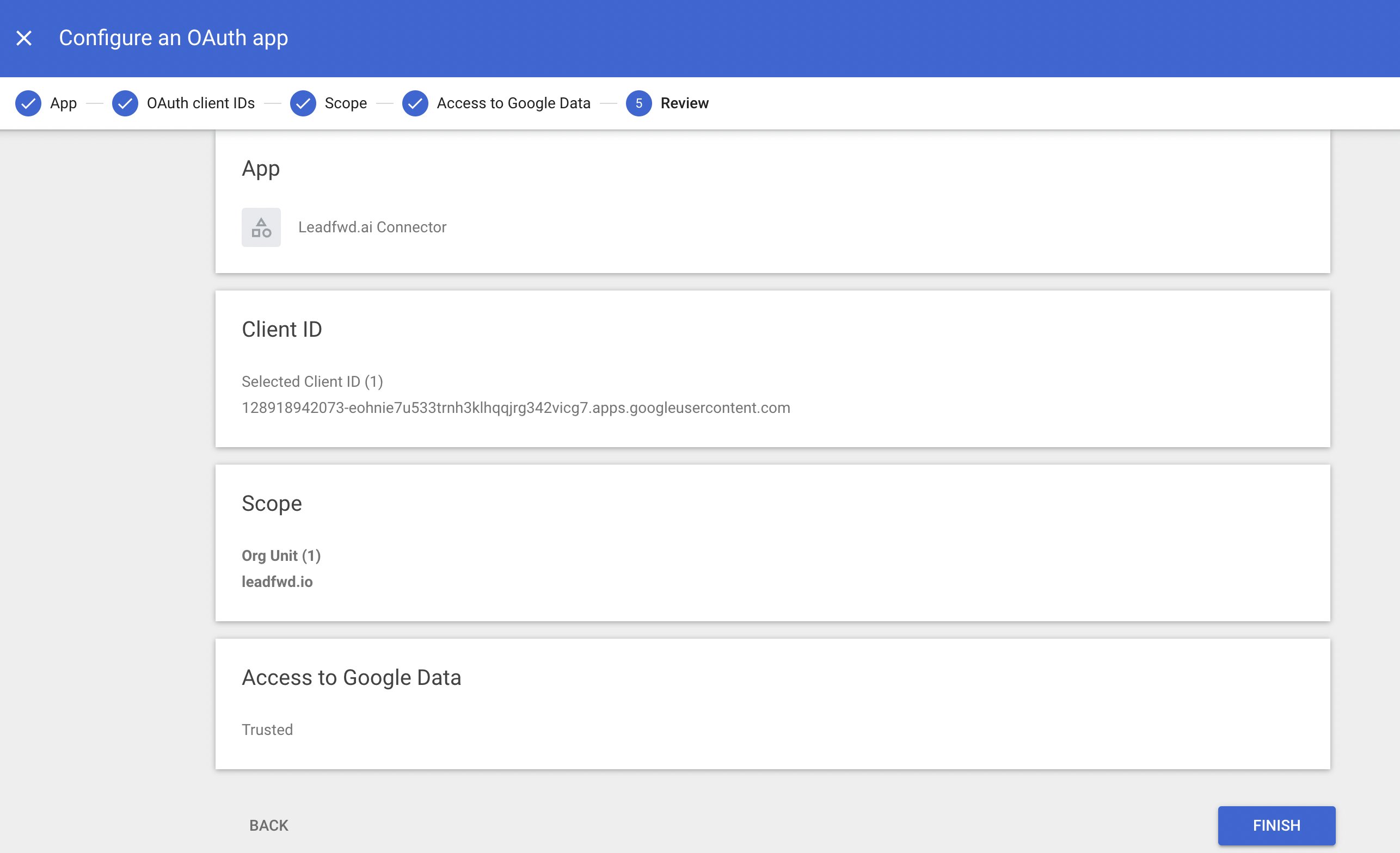

Step 7. Click Finish

Screen Shot 2024-01-03 at 10.07.43 AM.png

Return to Leadfwd and click the Sign in with Google button to enable any mailbox for the domain/organization you just enabled our Oauth app for using the Google Admin Console.

Add Sender Name

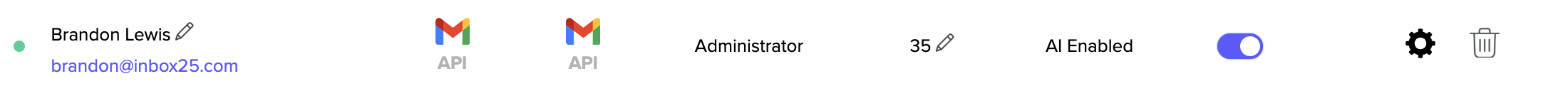

Upon completion you'll be redirected back to the Mailbox Connector view and your new mailbox will now be showing as active. To finish, click the

to add the Sender name for your new mailbox. This information does not transmit from the Gmail API.


Additional Mailbox Options

Additional configuration settings and options exist for individual mailboxes:
